Underground drainage pipes

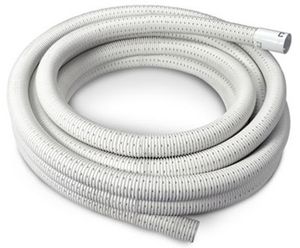

The WavinCoil perforated system land drainage pipes offer significant advantages when used for applications such agriculture, sports and recreation, or along roads and embankments. The system can help improve soil structure for better growth and higher yields. Playing fields and recreational areas will benefit from extended use across the season...

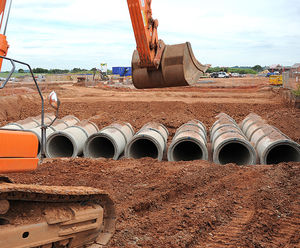

Marshalls Civils & Drainage offers an extensive range of precast concrete flexible jointed pipes from 300mm to 1800mm including bends, junctions and fittings. Precast concrete pipes are manufacture to class 4 (DC4) sulphate resistance in accordance with BRE Special Digest recommendations. Optional ovoid pipes and perforated pipes for foul and...

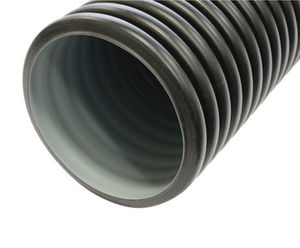

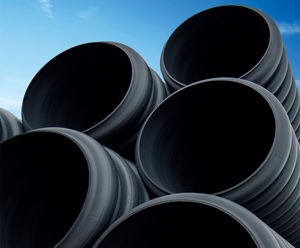

Wavin Twinwall infiltration pipes are slotted to allow controlled infiltration as water is transported along their length. This reduces the volume of water that needs to be drained at the endpoint and facilitates groundwater re-charging. Wavin TwinWall pipes have a ridged wall profile which offers advantages over smooth-wall pipes. The ridged wall...

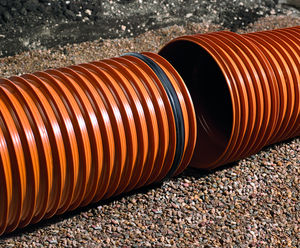

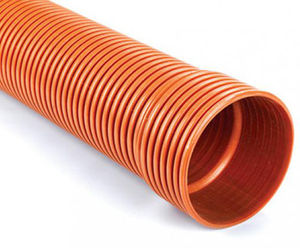

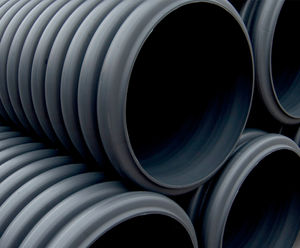

Wavin TwinWall drainage pipes and fittings are designed to transport surface water. They are produced in nominal diameters from 150-600mm in 6m lengths. Pipes are solid wall, perforated or half-perforated. The outer corrugated wall and a smooth finished inner wall assist hydraulic flow. They are easy to handle and install: ridged wall pipe system...

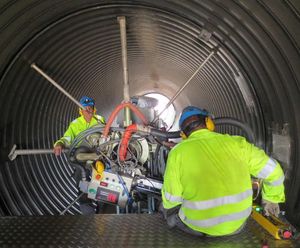

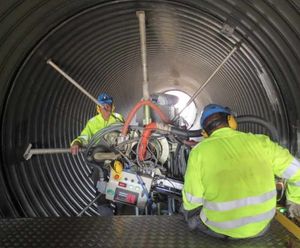

With SDS Weholite Jointing Systems, the most efficient method of joining is selected for each specific application to ensure that the pipeline remains watertight, durable and effective despite the potential for poor ground conditions where there is the risk of excessive movement...

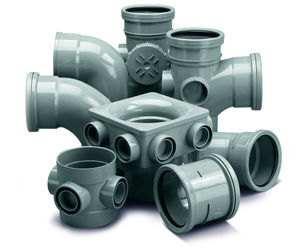

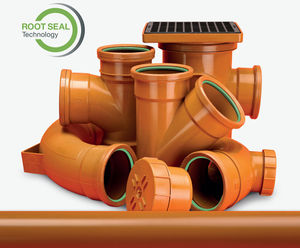

OsmaDrain has a wide choice of pipes and fittings for gravity drainage in depths of up to 10 metres. OsmaDrain uses 110 and 160mm diameter pipes and includes a comprehensive range of fittings, gullies, rodding eyes, covers, hoppers and inspection chambers, with a range of adaptors. OsmaDrain pipes are made using Wavin’s Recycore technology and...

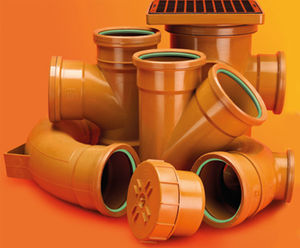

OsmaDrain is a PVC-U foul and surface water drainage system designed for use in gravity drainage applications at depths of up to 10m. OsmaDrain 110mm and 160mm award-winning pipe are made using Wavin’s unique Recycore technology; they have at least 50% recycled content. Fittings have a captive seal for making joints. Included in the range are...

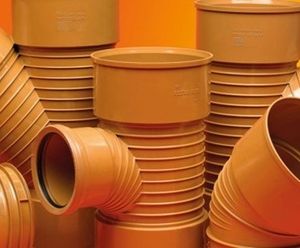

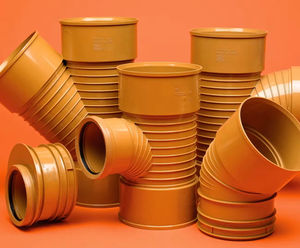

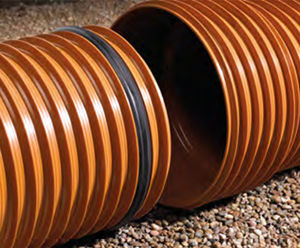

UltraRib is a PVC-U gravity sewer system suitable for adoptable and non-adoptable sewer installations. It has a smooth internal surface for enhanced flow, with concentric external ribs to provide axial rigidity and enhanced radial strength. It is lightweight for ease of handling on site. Available in 150mm, 225mm and 300mm sizes...

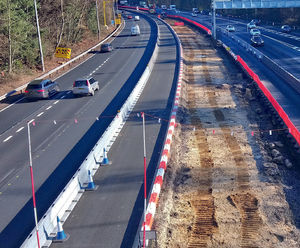

Weholite, a versatile BBA -certified system for surface water management and pollution mitigation, was used in the M4 smart motorway improvement. Chambers were supplied pre-formed with an orifice plate and penstock arrangement. The first system was installed in less than three days, shaving around two-and-a-half months...

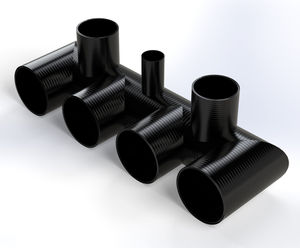

Weholite is used in a variety of pipeline applications from simple road or rail culverts to more demanding inter-process pipework on sewerage treatment plants and for offsite build components. The uniqueness of the Weholite production process means that pipes can be run in any length from 300mm to 30m in one piece. It is one of the few...

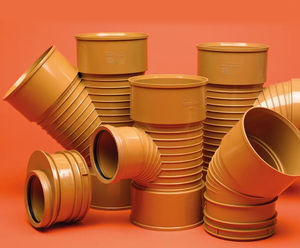

Wavin UltraRib is a PVC-U gravity sewer installations for foul water systems in adoptable situations up to depths of 10 metres. Fully socketed system of pipe and fittings which combines secure jointing with easy installation. Designed for high levels of axial rigidity and radial strength . UltraRib pipes have a stiffness classification of SN8 and...

ACO Water Management’s drainage solutions have been installed throughout the redevelopment of King’s Cross. As well as meeting site-specific requirements, aesthetically these installations are a great example of urban surface design. Thousands of passengers use the 7,000m2 King’s Cross Square outside King’s Cross Station every day, which sits just...

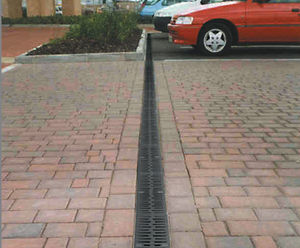

The ACO CivicDrain lightweight channel drainage system is designed for use in applications with light to medium duty traffic such as pedestrian areas and private car parks. CivicDrain is manufactured from ACO's high strength polymer concrete, in 1m lengths with a 100mm wide bore. It is available in three channel depths, which makes it suitable for...

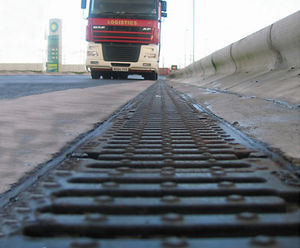

ACO S Range is a channel drainage system designed to provide efficient removal of surface water in heavy-duty applications. Certified to Load Class F900. Manufactured from high-strength recycled polymer concrete. Excellent chemical resistance. Integral cast iron edge rails. Four widths in sloping or constant depth channels...

GEOlight® geocellular storage from SDS was selected by the design team at AECOM for water attenuation at the 2017 Serpentine Gallery Pavilion. Sited on clay soil...

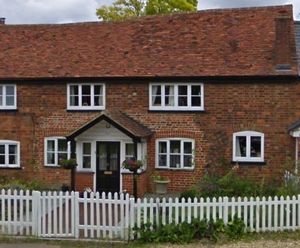

A range of Delta waterproofing products was used at ground level on a semi-detached property in Hertfordshire that suffered from severe flooding. Although primarily designed to waterproof basements, this is not the first contract where the Delta system has been selected for 'flood recovery', with application benefits such as economy and speed of installation in such critical situations...

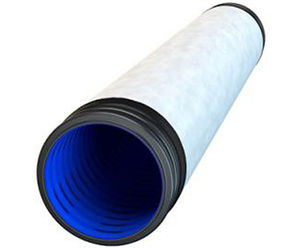

Ridgitreat surface water treatment pipes are designed to complement the existing Ridgidrain range when using a treatment infiltration solution, and enhance water quality when used as part of a source control sustainable drainage system. The system is comprised of Ridgidrain plain-ended pipes wrapped in permafilter geotextile. 100-300mm: rail; car...

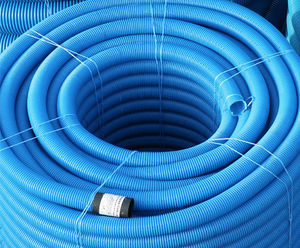

Landcoil PVC-U drainage pipes and fittings are designed to help manage land water.Landcoil offers significant improvements in areas where poor drainage negatively affects ground quality, such as agricultural applications requiring enhanced soil conservation or crop production capabilities, as well as sports and leisure projects that have problems...

Polysewer PVCu structured wall sewer pipes and fittings are produced in diameters of 150-300mm. The system includes couplings, seals, bends, junctions, specialist fabrications and saddles. Polysewer is suitable for new and replacement gravity sewer systems. Polysewer provides robust, chemical and sewer gas resistant sewer pipes with a design life...

Ridgisewer is a polypropylene structured wall pipe for use in gravity sewers. It can be fitted to new or replacement system. Pipes are available in diameters from 400mm to 600mm in 3m lengths. The complete system includes couplings, seals, bends, junctions, specialist fabrications and saddles. The system is manufactured in accordance to BSI...

Ridgitrack is an extension to the Ridgidrain surface water drainage piping system. It is specifically designed for rail applications and is approved for use within London Underground. Ridgitrack can be supplied perforated, half perforated or un-perforated and can be used in conjunction with all Ridgidrain couplers, seals, bends, junctions and...

Ridgidrain is a non-pressure surface water and sub-surface water drainage system that can be used as a carrier drain or used for attenuation or infiltration. Ridgidrain pipes are employed in a range of applications as an alternative to concrete and clay pipes, from residential and commercial to industrial and agricultural. They have been installed...

Polypipe Civils completed a challenging river diversion project at the Ffos-y-fran land reclamation scheme in Merthyr Tydfil, Wales, using its large-diameter pipe system, Ridgistorm-XL. Working alongside the main contractor, Dawnus Construction, and project engineers Peter Brett Associates, Polypipe Civils supplied and installed 72m of 1200mm...

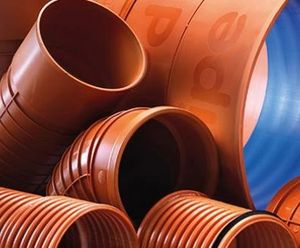

Polypipe adoptable sewer systems have a design life in excess of 100 years and are suitable for all sewer network applications. They are produced in diameters 150-3000mm, Polysewer, Ridgisewer and Ridgistorm-XL thermoplastic structured walled piping systems are manufactured to meet the material requirements of BS EN 13476:2007 (Part 1-3), Plastic...
