Combined drainage kerbs

Combined drainage kerbing is used on highways, streets, carriageways, roundabouts and car parks for the dual purposes of delineation and leading rainwater off the road.

Inlet holes in the one- or two-part kerbs allow surface water to run off quickly into appropriate drainage systems.

They are often manufactured to fit standard kerb profiles, so that uniform aesthetics and dimensions can be maintained throughout town and city centres.

Being perforated for drainage, they are often lighter in weight than regular kerb stones, and so are faster to lay.

Combined drainage kerbs can be rated according to the load classes set out in BS EN 1433. Class D400 , for example, denotes a loading of 400kN, and is specified for public highways and general parking areas.

Traditional paving edge kerbs , channel drainage and permeable concrete paving are found in other sections of this website.

  • Beany Block combined kerb and drainage
    Beany Block combined kerb and drainage
    Beany Block is a combined kerb and drainage system, which has been on the market for over 25 years. It provides a unique, flexible and cost-effective solution to highway drainage requirements. The system consists of base units of standard channel section and top units of inverted channel section, with an elliptical aperture in the centre of one...
    Marshalls
    • PRODUCT
  • Mini Beany combined kerb and drainage
    Mini Beany combined kerb and drainage
    Mini Beany is a combined kerb and drainage system, based on the design of Marshalls Beany Block system, which has been on the market for 25 years. Suitable for applications ranging from car parks to motorways, the Mini Beany provides a unique, flexible and cost-effective solution to drainage requirements. The system consists of base units of...
    Marshalls
    • PRODUCT
  • ACO KerbDrain® - combined kerb and drainage system
    ACO KerbDrain® - combined kerb and drainage system
    ACO KerbDrain is an award-winning combined kerb and drainage system that has been designed to form an integral part of modern, sustainable surface water management solutions. It is the first combined kerb drainage system of its kind to use recycled materials, and be independently certified and Kitemarked to BS EN 1433: 2002. The one-piece system...
    ACO Water Management
    • PRODUCT
  • Mono Beany one-piece combined kerb and drainage system
    Mono Beany one-piece combined kerb and drainage system
    Marshalls Mono Beany is a low- to medium-capacity, one-piece combined kerb and drainage syste that has evolved from Marshalls' Beany Block. Mono Beany combines a combination of Marshalls M-Tech high-strength concrete, which is cast around a 100% recycled polyethlene core to provide hydraulic flow benefits at low and medium capacities. Mono Beany...
    Marshalls
    • PRODUCT
  • KerbDrain CycleKerb combined kerb and drainage for cycle lanes
    KerbDrain CycleKerb combined kerb and drainage for cycle lanes
    ACO KerbDrain® CycleKerb units provide continuous drainage of cycle paths as well as ensuring safe and distinct transitions between pedestrian and non-pedestrian areas. The bullnose profile of the CycleKerb units can be combined with HB profiles and drop kerbs, which are available in the ACO KerbDrain® D400 range. This allows engineers and...
    ACO Water Management
    • PRODUCT
  • ACO KerbDrain D - combined kerb and drainage system
    ACO KerbDrain D - combined kerb and drainage system
    KerbDrain is an award winning combined kerb and drainage system specifically designed and developed to form an integral part of any modern, sustainable surface water management solutions. The KerbDrain channels are manufactured from ACO's lightweight material. Independently UKCA and CE marked to BS EN 1433:2002, the one-piece system is suitable...
    ACO Water Management
    • PRODUCT
  • ACO KerbDrain E / E+ - combined kerb and drainage system
    ACO KerbDrain E / E+ - combined kerb and drainage system
    ACO KerbDrain® E / E+ combined kerb and drainage systems are a versatile and efficient linear drainage solution suitable for various applications, including motorways, trunk roads, urban infrastructure, and landscaping projects. The range meets the highest levels of certification, performance and quality assurance for combined kerb drainage...
    ACO Water Management
    • PRODUCT
  • ACO combined kerb drainage systems installed on A453

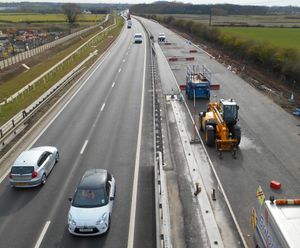

    ACO combined kerb drainage systems installed on A453
    A major infrastructure project to widen the A453 in Nottinghamshire is well underway with the scope of the work including the installation of nearly 10,000 metres of KerbDrain and associated accessories manufactured by ACO Water Management. Appointed as main contractor by The Highways Agency, Laing O’Rourke began operations on the stretch of road...
    ACO Water Management
    • PROJECT
  • KerbDrain BridgeDeck kerb and drainage system for bridges
    KerbDrain BridgeDeck kerb and drainage system for bridges
    ACO KerbDrain Bridgedeck is a versatile combined kerb and drainage system designed to effectively manage rainwater on bridges. Effective management of surface water on bridges is crucial for ensuring road-user safety, reducing maintenance costs, and preventing erosion that can shorten the service life of bridge structures. These one-piece units...
    ACO Water Management
    • PRODUCT
  • Traffic Drain channel drainage
    Traffic Drain channel drainage
    Traffic Drain is a strong and robust composite slot linear drainage channel system suitable for highway applications and fast moving vehicles. Each 500mm-long top unit has six inlet apertures and inclined side walls to enable surfacing materials to provide enhanced restraint. Base units are can be 500 or 1000mm long, and are available in a range...
    Marshalls
    • PRODUCT
  • Kerb and drain system for high-capacity urban highway - Taunton
    Kerb and drain system for high-capacity urban highway - Taunton
    ACO Water Management’s expertise was required to help design and implement an optimised drainage system for the Toneway Corridor Capacity Improvement Scheme, a major pinch point on the Taunton highway network in Somerset. The solution needed to cater for the high-capacity requirements present within an urban highway environment. The scheme intends...
    ACO Water Management
    • PROJECT
  • Sustainable drainage system - M5 Gloucester Gateway

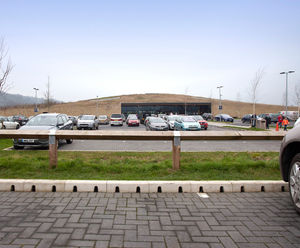

    Sustainable drainage system - M5 Gloucester Gateway
    An ambitious landscaping solution required ACO to create a sustainable drainage system to control rainwater run-off while providing a high-quality habitat for wildlife to flourish at the new Gloucester Gateway M5 motorway services. The solution need to be sensitive to its local green field surroundings, reduce flood risk, maximise bio-diversity...
    ACO Water Management
    • PROJECT
  • KerbDrain highway drainage system, Hindhead Tunnel
    KerbDrain highway drainage system, Hindhead Tunnel
    ACO were asked to provide a highway drainage system for a road tunnel under the sensitive environment of the Devil’s Punchbowl in Surrey, to meet the ambitious performance and environmental targets of the project. 1. Product to meet tough environmental and low-carbon construction targets. 2. Product to meet Highways Agency performance standards...
    ACO Water Management
    • PROJECT
  • ACO KerbDrain and SuDS swale inlets for A12 bypass road
    ACO KerbDrain and SuDS swale inlets for A12 bypass road
    In 2014, Norfolk County Council, in partnership with Great Yarmouth Borough Council, proposed the creation of a new bypass road on the outskirts of the town and called upon ACO Water Management to provide the accompanying sustainable highway drainage. The road would address the chronic congestion at the gateway to Great Yarmouth and...
    ACO Water Management
    • PROJECT
  • Surface water drainage systems, T5, Heathrow Airport
    Surface water drainage systems, T5, Heathrow Airport
    ACO Water Management were asked to address the surface water drainage requirements on varying applications across Terminal 5, Heathrow Airport: passenger set area: provide a drainage system capable of matching the hydraulic demands and restricted depth requirements of the installation; ground floor plaza area: provide a drainage concept that could...
    ACO Water Management
    • PROJECT
  • ACO provides sustainable slot drainage to supermarket

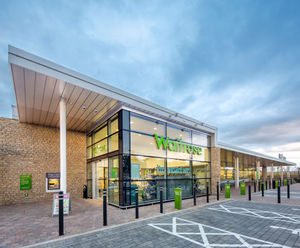

    ACO provides sustainable slot drainage to supermarket
    A Waitrose store in Stratford-upon-Avon has utilised ACO Water Management’s Qmax® slot drainage system and KerbDrain®, a combined kerb and drainage system, to effectively manage surface water on the new car park and the approach to the store. ACO worked closely with structural engineers BJB Consultancy and highways contractors Fitzgerald to help...
    ACO Water Management
    • PROJECT
  • Drainage, Weymouth & Portland National Sailing Academy

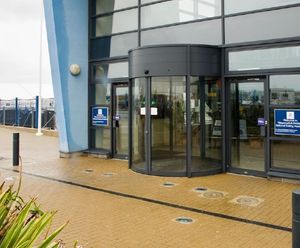

    Drainage, Weymouth & Portland National Sailing Academy
    The brief was to supply surface drainage products for the regeneration project in time for a major sailing event at Weymouth and Portland National Sailing Academy (WPNSA). The project included work on the surrounding Weymouth road infrastructure. ACO supplied MultiDrain channel drainage which was used outside the reception area of the main WPNSA...
    ACO Water Management
    • PROJECT
  • Sustainable drainage solution for new university campus

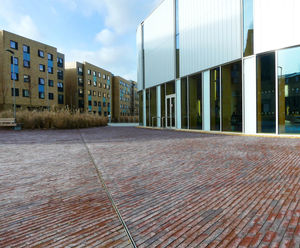

    Sustainable drainage solution for new university campus
    Bordering the River Nene and built on brownfield land once home to the old Northampton power station and a series of industrial warehouses, the University’s new campus forms part of the burgeoning Waterside Enterprise Zone. As well as housing a significant volume of student accommodation, the campus features a 20,000sqm Learning Hub and a new low...
    ACO Water Management
    • PROJECT
  • Althon CH 150 high-capacity GRC drainage channel 51 l/m
    Althon CH 150 high-capacity GRC drainage channel 51 l/m
    Althon CH 150 drainage channels are precast GRC channels with a trapezoidal profile and a high capacity of 51 l/m. Channel width - 152mm; max dimensions - 2000 (l) x 280 (w) x 440mm (d); choice of 9 lids for a range of loadings; suitable for large car parks and other hardstandings; suitable for problem sites, including those with a high watertable...
    Althon
    • PRODUCT
  • Althon CH 250 high-capacity GRC drainage channel 87 l/m
    Althon CH 250 high-capacity GRC drainage channel 87 l/m
    Althon CH 250 precast GRC drainage channels. Trapezoidal profile. High capacity of 87 l/m. Channel width 254mm. Overall dimensions L2000mm x W380mm x D515mm. Choice of 9 lids for C250 and D400 loadings. Suitable for large car parks and other hardstandings, including motorways and airports...
    Althon
    • PRODUCT
  • Althon CH 375 high-capacity GRC drainage channel 184 l/m
    Althon CH 375 high-capacity GRC drainage channel 184 l/m
    Althon CH 375 precast GRC drainage channels. Trapezoidal profile. High capacity of 184 l/m. Channel width 381mm. Overall dimensions L1500mm x W500mm x D740mm. Choice of 9 lids for C250 and D400 loadings. Suitable for large car parks and other hardstandings, including motorways and airports...
    Althon
    • PRODUCT
  • Althon CH 525 high-capacity GRC drainage channel 325 l/m
    Althon CH 525 high-capacity GRC drainage channel 325 l/m
    Althon CH 525 precast GRC drainage channels. Trapezoidal profile. High capacity of 325 l/m. Channel width 533mm. Overall dimensions L1200mm x W725mm x D945mm. Choice of 9 lids for C250 and D400 loadings. Suitable for large car parks and other hardstandings, including motorways and airports...
    Althon
    • PRODUCT
  • Althon CH 600 high-capacity GRC drainage channel 412 l/m
    Althon CH 600 high-capacity GRC drainage channel 412 l/m
    Althon CH 600 precast GRC drainage channels. Trapezoidal profile. High capacity of 412 l/m. Channel width 610mm. Overall dimensions L1000mm x W875mm x D1000mm. Choice of 9 lids for C250 and D400 loadings. Suitable for large car parks and other hardstandings, including motorways and airports....
    Althon
    • PRODUCT
  • KerbDrain SUDS scheme, Burton Joyce
    KerbDrain SUDS scheme, Burton Joyce
    Implementation of SUDS scheme with capability of removing surface water quickly from busy carriageway. Collect and convey surface water run-off to prevent any standing water build-up. Support installed soakaways with additional attenuation capacity. Minimise both in-carriageway and below ground infrastructure. Recognising it needed to...
    ACO Water Management
